OEM 1X2 FBT Singlemode Fiber Optic Splitter for CATV networks

Ask Lasest Price
Brand Name :	Geehe,OEM
Model Number :	Single Mode FBT Coupler
Certification :	ROHS, ISO9001/14001
Price :	Negotiabled
Payment Terms :	T/T, L/C, Western Union,Cash
Supply Ability :	5,000pcs per day
Delivery Time :	7-10 Working days after confirm orders

Add to Cart

Product Details
Company Profile

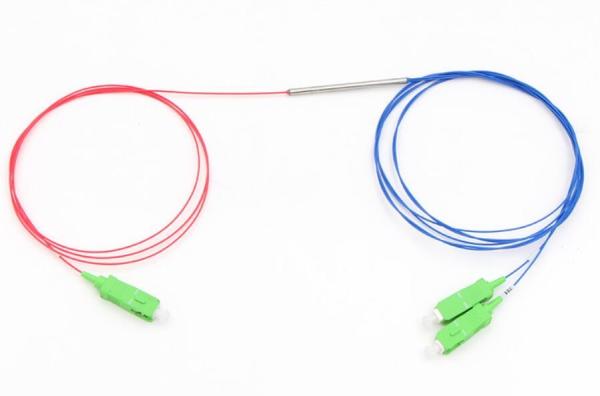

OEM 1X2 FBT Singlemode Fiber Optic Splitter for CATV networks

OEM FBT Coupler Splitter 1310 / 1550nm Steel Tube Fiber Optic Splitter

Description.

FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
Rollball offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x4 ports for tree couplers, and from 2x2 up to 4x4 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

Features

Low insertion loss
Low Polarisation Dependant Loss (PDL)
High return loss
Uniform power splitting
Wide operating wavelength
Wide operating temperature
Good environmental stability
Qualified under Telcordia Generic Requirements (GR): GR-1221 and GR-1209

Applications

FTTx systems
CATV networks
Passive Optical Networks (PON)
Local Area Networks (LAN)
Test equipment

Specification:

Parameter		P	A
Operating wavelength (nm)		980,1310, 1490 ,1550
Operating bandwidth (nm)		980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm
Fiber Type(dB)		Corning G652D OR Corning G657 A1 0.15
Insertion loss (dB)	50:/50	≤3.3	≤3.5
	40/60	3.70~4.40≤2.5	3.50~4.60/≤2.8
	30/70	5.00~5.60/≤1.8	4.90~6.10/≤2.1
	20/80	6.80~7.40/≤1.2	6.50~7.70/≤1.2
	10/90	9.60~10.50/≤0.6	8.80~11.40/≤0.8
	5/95	12.70~13.50 /≤0.4	12.05~14.05/≤0.5
	3/97	14.60~15.50/≤0.3	13.60~16.05/≤0.4
	2/98	16.60~17.90/≤0.25	15.60~18.20/≤0.3
	1/99	19.20~20.80/≤0.2	18.80~21.40/≤0.25
PDL (dB)		≤0.1	≤0.15
Return loss(dB)		≥50	≥45
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85

Package Dimensions
Package A(Mini)	2.4mm x 35mm stainless steel tube
Package A	3.0mm x 48mm stainless steel tube
Package B	3.0mm x 55mm stainless steel tube
Package C	90mm x16mm x 9mm case
Pigtail Style
Package A	250μM bare fiber
Package B	900μM loose tube
Package C	900μM loose tube or 2mm/3mm cable

Other package dimensions can be made on customer request.

Ordering Information

WBC-

X-

X2-

XX-

X-

XX-

P:Premium

A:Grade A

On request

12:1X2

22:2X2

31:1310nm

49:1490nm

55:1550nm

98: 980nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable

30: 3mm cable

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

Grade

Port number

Operation Wavelength

coupling Ratio

Fiber length

Fiber type

Connect Type

Dimension

EX: WBC-P-12-31-50-1-20-SU-C
