Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Adapter---Multimode 002
Certification :	ROHS,ISO9001,ISO 14001
Price :	Negotiable
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, Cash
Supply Ability :	2,000pcs per day
Delivery Time :	3-5 Working days to delivery,based on quantity

Add to Cart

Product Details
Company Profile

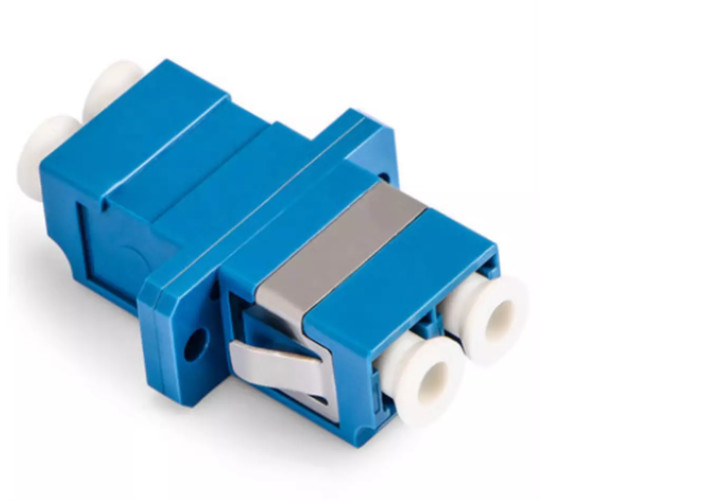

Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange

Fiber Optical Toslink SM MM Fiber Optic Adapter LC SC Duplex Adapter With Flange

Brief Introduction

LC Duplex Adapters are versatile and fit most patch panels, wall-mounts, racks, and adapter plates.

Our LC Duplex Adapters fit standard Simplex SC cutouts for patch panels, cassettes, adapter plates, wall-mounts and more. These adapters have the most common footprint, and as such will fit universally into any company’s product which adheres to current fiber optic standards.

Product Features

• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.

Specification

parameter	SC, FC, ST, LC, MU, ST
End-face	APC/UPC/PC
Mode	Single mode & multi mode
Sleeve	Zirconia ceramic, phosphor bronze
Insertion loss (dB)	≤0.2
Exchangeability (dB)	≤0.2 (connect randomly)
Tensile strength (dB)	≤0.2 (0~100N)
Vibration (dB)	≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB)	≤0.2(-40~80℃, 21 cycles)

Ordering Information:
EX: OFA-D-FC-APC-Z-N-N

OFA

-X

-XX

-X

S: simplex

D: duplex

APC

UPC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter

Fiber mode

Connector Type

Sleeve

Flange type

Shutter type

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20(Plug≤0.30)
Repeatability	Time	＞1000

Application

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks
