Single Mode 116 132 Fiber Optic PLC Splitter With PVC LSZH Outer Jacket

Ask Lasest Price
Brand Name :	Geehe or OEM,ODM
Model Number :	PLC 1✖2,1✖4,1✖16,1✖32
Certification :	ISO9001 Quality, RoHS
Price :	10-15pcs/unit
Payment Terms :	D/P, D/A, L/C, T/T, Western Union,Cash
Supply Ability :	5,000 pcs per day
Delivery Time :	With 3-5 days after confirmed the order

Add to Cart

Product Details
Company Profile

Single Mode 116 132 Fiber Optic PLC Splitter With PVC LSZH Outer Jacket

1*16,1*32 PLC Fiber Optic Splitter with PVC LSZH Outer Jacket

Product description:

Geehe’s PLC splitters feature low insertion loss, good channel-to-channel uniformity and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation.

Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64 splits.

Features:

Single fiber, SC/LC/ST/FC-based connector
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 1.5mm, 2.0mm, 3.0mm,2.0*3.0mm

Application:

FTTx systems
PON networks
CATV links
Optical signal distribution
Broadband, CATV, telecom, data centers, LAN, WAN, medical, military and wireless
Compliance

Specification:

FIber Optical PLC Splitter
Parameter	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating Wavelength(nm)	1260~1650
Port Wavelength Range (nm)	1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm	7.1	10.5	13.6	16.8	20.5	7.4	10.8	14.5	17.5
Uniformity (dB)	0.5	0.8	1	1.2	1.8	1.2	1.5	1.8	2
PDL @ 1310/1550 nm (dB)	≤0.3
Return Loss@ 1310/1551 nm (dB)	≤-55
Input Power (mW)	250max
Operating Temperature (℃)	-40~+85℃
Storage Temperature (℃)	-40~+85℃
Fiber Type	Corning G657A1

Package dimensions

WxHxL(mm)	PORT
60x7x4	1x4	1x8	2x4	2x8
60x12x4	1x16		2x16
80x12x6	1x32		2x32
100x40x6	1x64

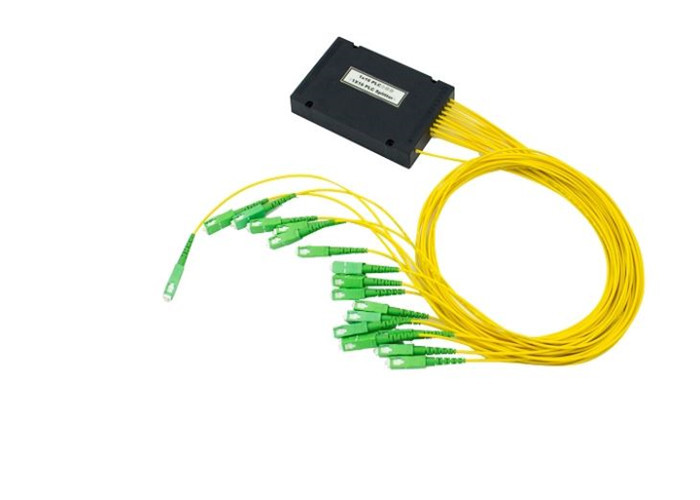

Product Pictures
