Product Description

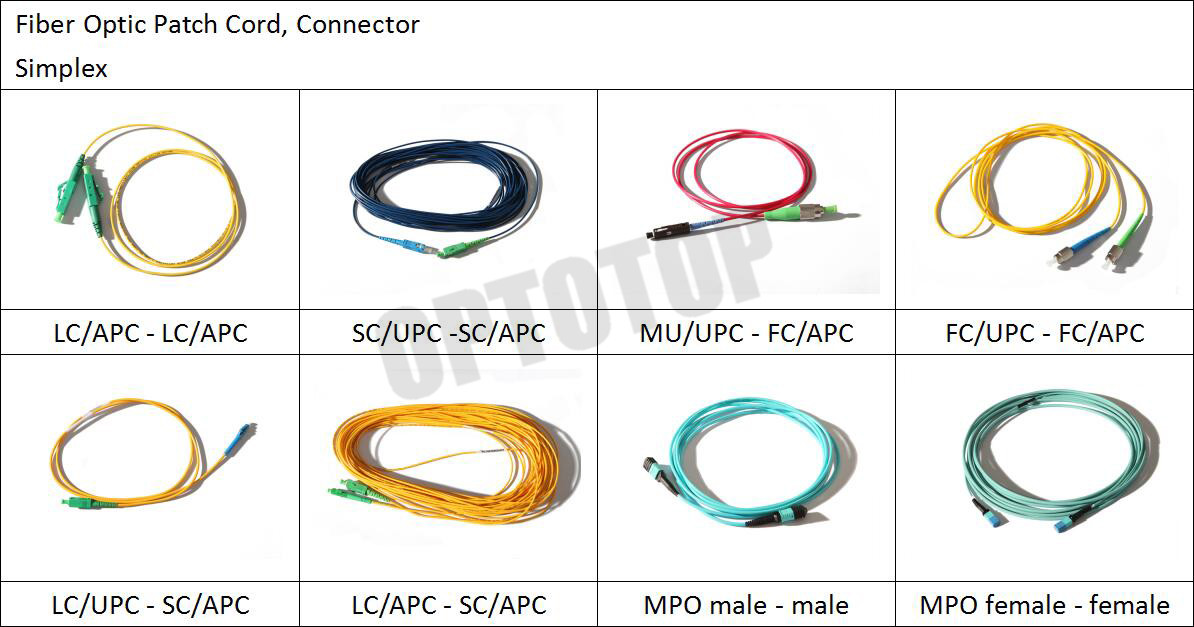

Fiber optic patch cord ,Precise connector, Customized length,
Excellent mechanical capability, insertion loss<0.2dB, Good
durability and exchangeability, Compliant with TIA/EIA and IEC
standard
Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
Specifications
| Parameter | Unit | Index |
| End-face type | | PC | UPC | APC |
| IL | dB | SM: ≤0.3; MM≤0.1 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36 (without APC connector) |
| Mating times | | ＞1000 |
| Operating temperature | ℃ | -40~ +80 |
Ordering Information
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: simplex D:duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
| Fiber mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
EX: OFC-S-LC-LA-30-1-0.5
Packing & Shipment
Packaging : plastic bag & caron
Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If
you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and
holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays
excepted) for delivery. For Spain, Italy, Brazil and some other
countries, items will take longer time to arrive due to customs
clearance period.
Service
One to one, heart to heart service. We look forward the long-term
continuing services for you, not just one or two times cooperation.
Perfect after-sales service :24-hour designated telephone number,
e-mail and customer manager.
Q: Are you factory or trading company?
A: No. We are professional manufacturer in this filed since 2003.
Q: What kind products do you have?
A: FBT & PLC splitter, Fiber connectors, attenuators, adapters and
isolators...etc.
Q: Do you provide free samples?
A: Yes. Free sample on request for your test. We will send you the
free sample if you pay the shipping cost.
