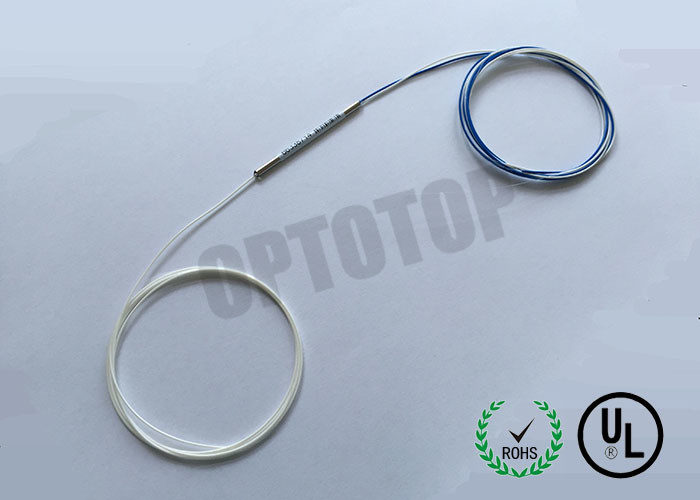

980 / 1550 nm Operation Wavelength 0.9 mm Multimode Wdm Passive Optical Nettworks

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	WDM Single Mode
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	300,000pcs per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

980 / 1550 nm Operation Wavelength 0.9 mm Multimode Wdm Passive Optical Nettworks

EX: WDM-P-12-95-1-09-SU-B

Key Features

Low excess loss

Various Coupling Ratio

Compact Size

High Stability and Reliability

Mini sizes

Applications

Long-haul Telecommunications

CATV

FTTH

Local Area Network

Description

1*N(2*N) coupler splitter modules are cascaded with the single mode couplers. These modules are widelly used for FTTH, LAN, and CATV optical networks.

The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Specifications

Parameter	980/1550nm WDM or 1060/1550nm WDM					1310/1550nm WDM		1480/1550nm WDM
Fiber Type(dB)	Corning HI1060flex OR OFS BF05635-02					SMF-28e
Operating wavelength (nm)	980 & 1550		1060&1550			1310&1550		1480&1550
Operating bandwidth (nm)	± 10/20					±15

Grade	P	A		P	A	P	A	P	A
Insertion Loss(dB)	≤0.15	≤0.25		≤0.30	≤0.40	≤0.2	≤0.3	≤0.3	≤0.35
Isolation(dB)	≥20	≥18		≥20	≥18	≥25	≥18	≥25	≥18
PDL (dB)	≤0.05	≤0.1		≤0.05	≤0.1	≤0.05	≤0.1	≤0.1	0.1
Directivity (dB)	≥55
Operating temperature (℃)	-40 ~ +85

The above specification is without connector * Other specifications can be made on customer request.

Ordering Information

WDM-

N-

XX-

X-

XX-

…

95:980&1550nm

135:1310&1550nm

65:1060&1550nm

45:1480&1550nm

01: SMF-28e

02:HI1060flex,

03: OFS BF05635-02

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable 30: 3mm cable

SC:SC/UPC

SA:SC/APC

.00:no connect

A: A

B: B

C:C

Grade

Operation Wavelength

Fiber type

Fiber length

Pigtail type

Connect Type

Dimension

EX: WDM-P-12-95-1-09-SU-B
