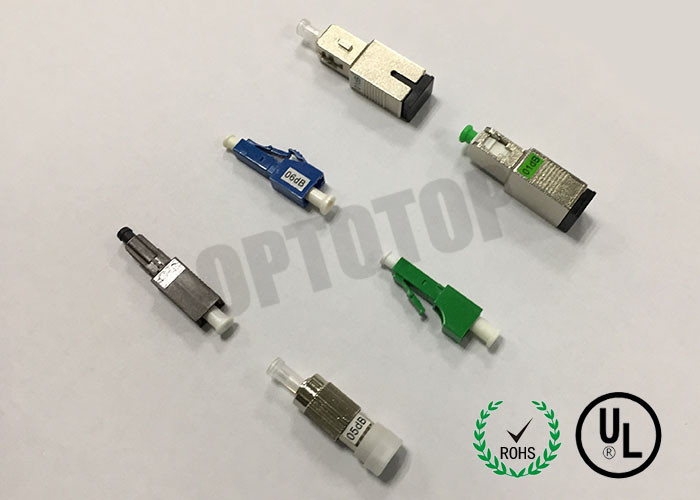

    Female to Male Fiber Optic Attenuator LC SC FC MU 1-30dB For PON WDM DWDM LAN

    Ask Lasest Price
    Brand Name : Geehe or OEM
    Model Number : Optical Pad Attenuator, Bulkhead Attenuator
    Certification : ROHS, REACH, UL, ISO
    Price : Price Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1,000pcs per day
    Delivery Time : 5-7 working day
    • Product Details
    • Company Profile

    Female to Male Fiber Optic Attenuator LC SC FC MU 1-30dB For PON WDM DWDM LAN


    Female to Male Fiber Optic Attenuator LC SC FC MU 1-30dB For PON WDM DWDM LAN


    EX: BAT -LC-2A-02


    Product Description


    Optical pad attenuators are built with metal-ion doped optical slices and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. They can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance.


    Key Features


    100% tested in factory


    Environmentally stable


    Low back refection


    insertion loss


    Low PDL


    Manufactured with metal-ion doped


    Applications



    Telecommunication networks


    Gigabit applications (ATM, Ethernet)


    Receiver padding


    CATV, LAN, telecommunications


    WDM and DWDM systems channel balancing


    Test and instrument


    Optical transmission systems


    EDFA, DWDM, Long-haul


    Wide-Area networks


    Ordering Information


    BAT-

    XX-

    X

    A-

    XX-

    LC: LC

    SC: SC

    FC: FC

    1: APC

    2:UPC

    01: 01DB

    02: 02DB

    03: 02DB

    04: 02DB

    Connector Type

    Interface polish

    Attenuation Value

    EX: BAT -LC-2A-02


    Package & Specifications

    Packaging

    Description

    Clear Ziploc bag, 1 unit per bag

    Physical Characteristics

    Parameter

    Value

    Plastic material

    UL 94V-0 ABS high-impact thermoplastic

    Fiber material

    Metal-ion doped optical fiber

    Mechanical Characteristics

    Parameter

    Value

    Operating temperature (℃)

    -40 ~ +85

    Storage temperature (℃)

    -40 ~ +85

    Optical Performance

    Parameter

    Value

    Operating bandwidth

    1250nm~1625nm

    Center wavelength

    1310nm and 1550nm

    Attenuation tolerance

    1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB

    Return loss UPC(dB)

    ≥45

    Return loss APC(dB)

    ≥55

    PDL

    ≤0.1
