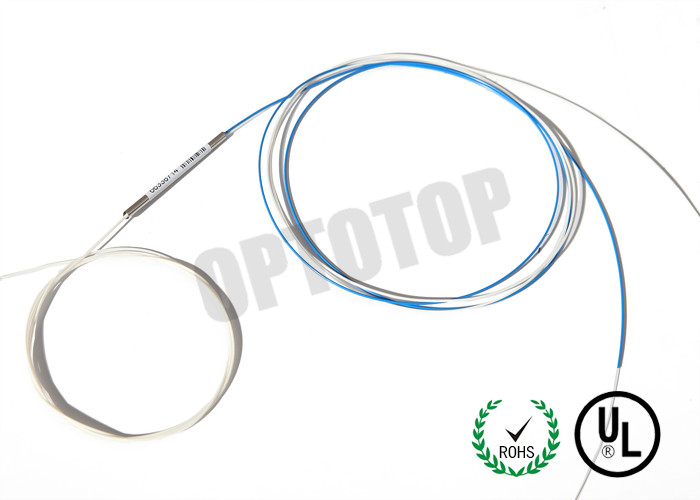

1X2 2 / 98 1310 / 1550 nm Fiber Optic Single Mode Fbt Coupler 0.25 mm / 0.9 mm package A / B

1X2 2/98 1310/1550nm Fiber Optic Single Mode Fbt Coupler 0.25mm/0.9mm package A/B

Single Mode Fiber Coupler.pdf

Description
The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

1X2 2 / 98 1310 / 1550 nm Fiber Optic Single Mode Fbt Coupler 0.25 mm / 0.9 mm package A / B
Applications Features
Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system Amplifier
CATV

1X2 2 / 98 1310 / 1550 nm Fiber Optic Single Mode Fbt Coupler 0.25 mm / 0.9 mm package A / B

Operating Wavelength(nm)	980±40/1310±40/1550±40		980&1550±40/1310&1490&1550±40		Parameter	Unit	Value
Coupling Ratio(%)	Insertion Loss(dB)				Fiber Type	/	HI 780/Fiex 1060/SMF-28e/SMF-28eXB
Coupling Ratio(%)	Tap	Singal	Tap	Singal	Fiber Type	/	HI 780/Fiex 1060/SMF-28e/SMF-28eXB
01/99	19.0-21.0	≤0.20	18.5-21.5	≤0.25	PDL	dB	Typ:＜0.1 Max:＜0.15
03/97	14.6-16.2	≤0.30	14.5-16.5	≤0.20	Directivity	dB	＞55
05/95	12.4-13.8	≤0.35	12.0-14.5	≤0.45	Return Loss	dB	＞50
10/90	9.70-10.7	≤0.60	9.70-11.2	≤0.60	Excess Loss	dB	Typ:＜0.1 Max:＜0.2
20/80	6.70-7.60	≤1.15	6.60-7.80	≤1.15	Pigtail Dia.	mm	0.25/0.9/2.0/3.0
33/67	4.65-5.65	≤1.70	4.50-5.85	≤1.80	Pigtail Length	cm	＞100
40/60	3.95-4.30	≤2.50	3.70-4.70	≤2.70	Operating Tem.	℃	-10～ +70
50/50	2.85-3.30		2.80-3.40		Storage Tem.	℃	-40～ +85
