Single Mode Fiber Optic Coupler Splitter

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Fiber Optic PLC Splitter
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10,000 pcs per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

Single Mode Fiber Optic Coupler Splitter

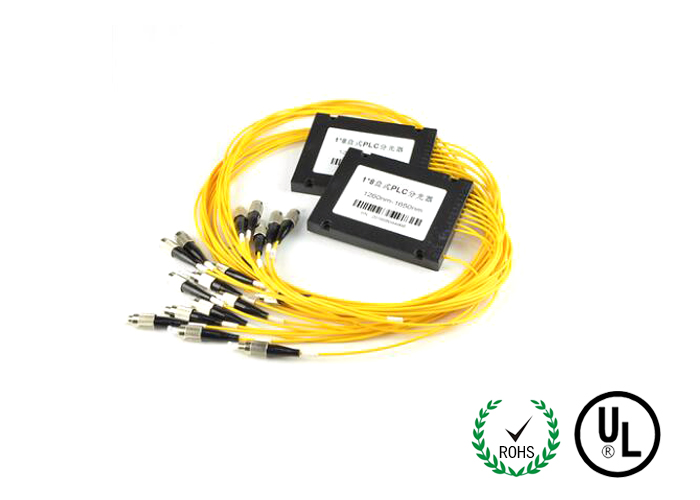

Low Loss Single Mode ABS Box Module Fiber Optic Splitter 1 x 8 PLC 2.0mm FC/UPC Connector

Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features
High uniformity and reliability
Wide operating wavelength 1260~1650nm
Low insertion and return loss
Built with Corning G.657 Grade A optical
Low Polarization Dependent Loss(PDL)
Operating temperature -40°C to 85°C

Applications
FTTH deployments
CATV networks
Access/PON distributions
LAN,WAN,Metro

Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances

1xN/2xN PLC Splitters (without connects)

Parameter	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating wavelength (nm)	1260~1650
Port wavelength range (nm)	1310±20; 1490±10; 1550±20
Insertion loss @ 1310 nm/1550 nm	7.1	10.5	13.6	16.8	20.5	7.4	10.8	14.5	17.5
Uniformity (dB)	0.5	0.8	1	1.2	1.8	1.2	1.5	1.8	2
PDL @ 1310/1550 nm (dB)	≤0.3
Return loss @ 1310/1550 nm (dB)	≤55
Input power (mW)	250 max
Operating temperature (℃)	-40~+85℃
Storage Temperature (℃)	-40~+85℃
Fiber Type	Corning G657A1

Package dimensions

WxHxL(mm)	PORT
60x7x4	1x4	1x8	2x4	2x8
60x12x4	1x16		2x16
80x12x6	1x32		2x32
100x40x6	1x64

Package dimensions

LxWxH(mm)	PORT
100x80x10	1x4	1x8	2x4	2x8
120x80x18	1x16	1x32	2x16	2x32
140x114x18	1x32	2x32	1x64

Single Mode Fiber Optic Coupler Splitter
