LC / UPC Connector Fiber Optic Cable Splitter Metal / Plastic Material

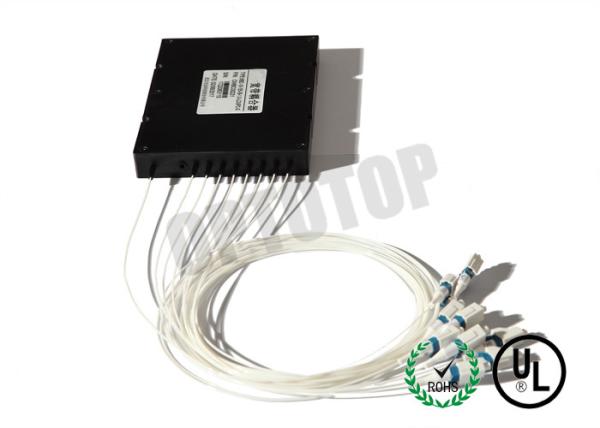

1X8 Single Mode ABS Box PLC Splitter 0.9mm In and Out LC/UPC Connector (FTTH, CATV, telecom)

Description
Planar Lightwave Circuit Splitter is a passive component used for uniformly splitting. The PLC Splitter is built based on accurate alignment system and the mature manufacturing technology. It is fully compliant with Telcordia GR-1209 and GR-1221 rebilitiy qualification requirement.

Features
High uniformity and reliability
Wide operating wavelength 1260~1650nm
Low insertion and return loss
Built with Corning G.657 Grade A optical
Low Polarization Dependent Loss(PDL)
Operating temperature -40°C to 85°C

Applications
FTTH deployments
CATV networks
Access/PON distributions
LAN,WAN,Metro

Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances


1xN/2xN PLC Splitters (without connects)

Package dimensions

Package dimensions

About Us:

Wuhan Geehe Optical Communication Co.,ltd ( GEEHE COMM)  is an international leader in manufacturing& distributing fiber optic components, equipment and supplies and has been helping customers make the best cable assemblies in the world for over 15 years. Several areas of specialization and expertise, in which they are the industry leader, make them the preferred choice for many of the world’s fiber professionals.

 Our Certificates:

 GR-1209-CORE Requirements For Passive Optical Compents
 GR-1221-CORE Reliability Assurance Requirements For Passive Optical Components
 GR -326-CORE Requirements For Single Mode Optical Connectors And Jumpers Assemblies
 TIA -604 Fiber Optical Connector Intermateability Standard
 RoHS Directive On Restriction Of Hazardous Substances

 ISO9001    Quality System Standard
