OM4 Multimode Fiber Coupler

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Multimode Fiber Coupler
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	300,000pcs per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

OM4 Multimode Fiber Coupler

OM4 Multimode 1x2 Optical Fiber Coupler 50:50 850nm Bare Fiber 0.25mm No Connector

MMC-P-12-85-50-1-25-00-A

Ordering Information

MMC-

X2-

35-

XX-

X-

XX-

xx-

P:Premium

A:Grade A

On request

12:1X2

22:2X2

85:850nm

31:1310NM

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

Grade

Port number

Operation Wavelength

coupling Ratio

Fiber length

Fiber type

Connect Type

Dimension

EX: MMC-P-12-85-50-1-25-00-A

Specifications

Parameter	P	A
Operating wavelength (nm)	850,1310
Fiber Type(dB)	Corning multimode 50/125 or 62.5/125
Coupling Ratio (%)	50:50
Excess Loss (Typical) (dB)	0.4	0.7
Max. Insertion Loss (dB)	3.7	4.0
Uniformity (Max.) (dB	0.6	0.8
Port Configuratio	1x2 or 2x2
PDL (dB)	≤0.1	≤0.15
Return loss(dB)	≥45
Directivity (dB)	≥40
Operating temperature (℃)	-40 ~ +85

The above specification is without connector
Other specifications can be made on customer request

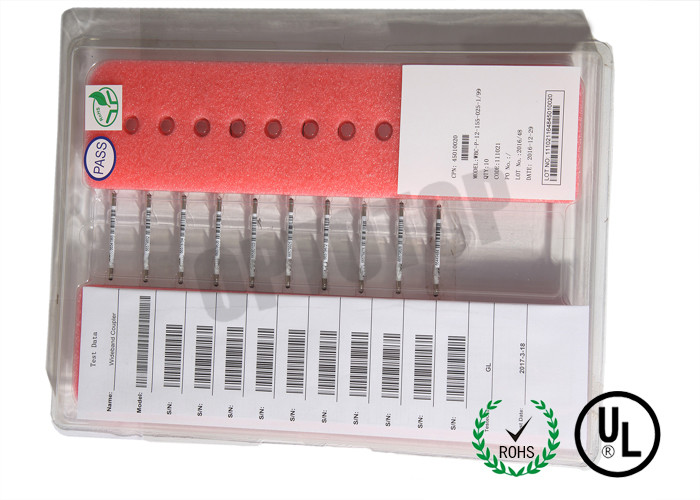

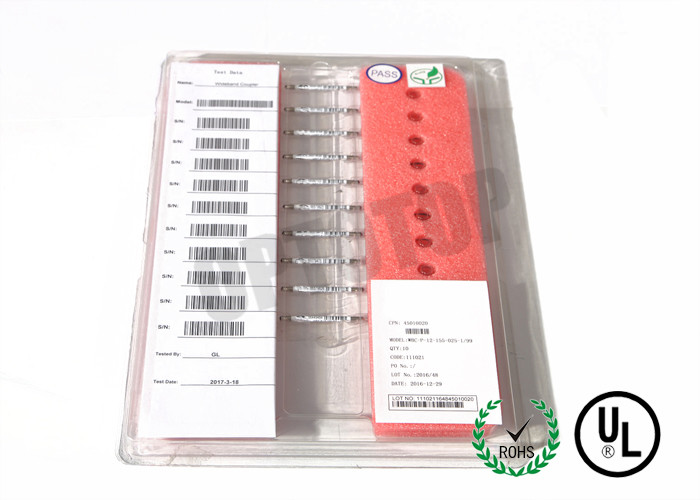

Minimum Package

Code	Material	Number	Dimension(mm)			Note
Code	Material	Number	Length	Width	Height	Note
A	Blister Box	2	200	103	16	No Connector
A	Blister Box	10	328	226	13	No Connector
B	Blister Box	1	230	135	16	With Connector
B	Blister Box	1	224	135	13	No Connector
C	Pearl Cotton and Carton	1	215	155	48	With Connector

Key Features

Low excess loss

Uniform Power Splitting

Rugged Package

Excellent Environmental & Mechanical Stability

Applications

Long-haul Telecommunications

Digital, Hybrid and AM-Video Systems

High Speed Local Area Networks

CATV System
