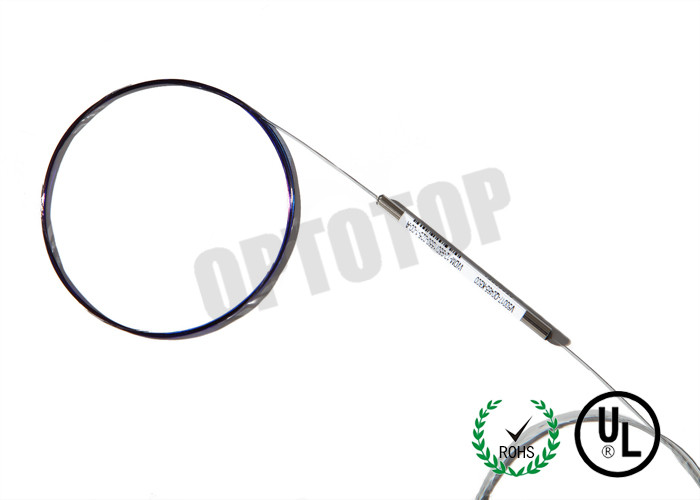

850 nm Bare Multimode Fiber Coupler 0.25 m 1.5 m For CATV System , No Connector

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Multimode Fiber Coupler
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	300,000pcs per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

850 nm Bare Multimode Fiber Coupler 0.25 m 1.5 m For CATV System , No Connector

Coupler Multimode OM1 1x2 5:95 850nm Bare Fiber 0.25m 1.5m No Connector mini size CATV

Key Features

Low excess loss

Uniform Power Splitting

Rugged Package

Excellent Environmental & Mechanical Stability

NX4(n=1,2,4) NX8(n=1,2,8) port ratios are available.

Applications

Long-haul Telecommunications

Digital, Hybrid and AM-Video Systems

High Speed Local Area Networks

CATV System

Specifications

Parameter	P	A
Operating wavelength (nm)	850,1310
Fiber Type(dB)	Corning multimode 50/125 or 62.5/125
Coupling Ratio (%)	50:50
Excess Loss (Typical) (dB)	0.4	0.7
Max. Insertion Loss (dB)	3.7	4.0
Uniformity (Max.) (dB	0.6	0.8
Port Configuratio	1x2 or 2x2
PDL (dB)	≤0.1	≤0.15
Return loss(dB)	≥45
Directivity (dB)	≥40
Operating temperature (℃)	-40 ~ +85

The above specification is without connector
Other specifications can be made on customer request

Package Dimensions & Pigtail Style

Package Dimensions
Package A	3.0mm x 48mm stainless steel tube
Package B	3.0mm x 55mm stainless steel tube
Package C	90mm x16mm x 9mm case
Pigtail Style
Package A	250μM bare fiber
Package B	900μM loose tube
Package C	900μM loose tube or 2mm/3mm cable

Other package dimensions can be made on customer request.

Ordering Information

MMC-

X2-

35-

XX-

X-

XX-

xx-

P:Premium

A:Grade A

On request

12:1X2

22:2X2

85:850nm

31:1310NM

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

Grade

Port number

Operation Wavelength

coupling Ratio

Fiber length

Fiber type

Connect Type

Dimension

EX: MMC-P-12-31-50-1-25-00-A
