Yellow Jacket Fiber Optic Patch Cord 10m For Test Equipment / CATV

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Corning G657A
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiable
Payment Terms :	Bank Transfer
Supply Ability :	10,000 pcs per month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

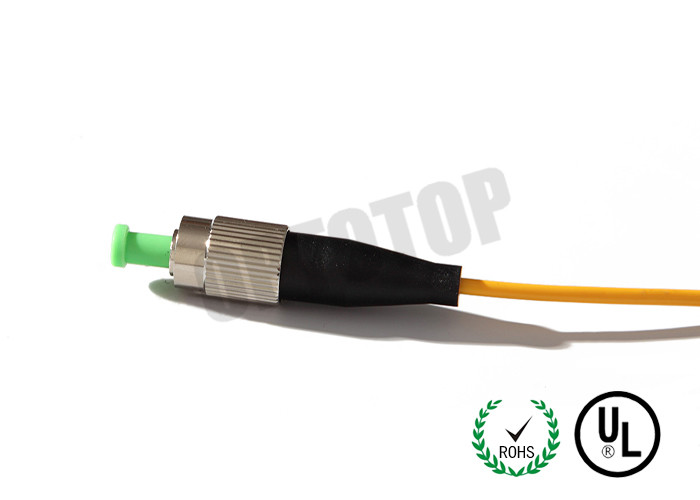

Yellow Jacket Fiber Optic Patch Cord 10m For Test Equipment / CATV

FOPC OS2 B/I, 2F zip 3mm OFNR, FC/UPC-FC/UPC, 10m, YEL JKT

EX: OFC-S-LC-LA-30-1-0.5

Product Description

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard

Ordering Information

OFC

-X

-XX

S: simplex

D:duplex

LA:LC/APC

LC:LC/UPC

LP:LC/PC

LA:LC/APC

LC:LC/UPC

LP:LC/PC

09:0.9mm

20:2.0mm

30:3.0mm

0:G652D

1:G657A

2:50/125

3:62.5/125

4:others

0.5:0.5m

1.0:1.5m

10:10.0m

Fiber mode

Connector Type

Cable Diameter

Fiber Type

Fiber Length

EX: OFC-S-LC-LA-30-1-0.5

Application

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Active dvice termination

Telecommunication networks

Feature

High temperature stability

Low insertion loss and back reflection loss

Good echangeabilityGood Durability

LC,SC,FC,ST,MPO, fiber optic patch cord
Yellow Jacket Fiber Optic Patch Cord 10m For Test Equipment / CATV

Specifications

Parameter		Unit	Index
End-face type			PC	UPC	APC
IL		dB	SM: ≤0.3; MM≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥50	≥50
	MM	dB	≥36 (without APC connector)
Mating times			＞1000
Operating temperature		℃	-40~ +80

OEM patch cord
Customized length
CE,Rohs
High quality and fast delivery
