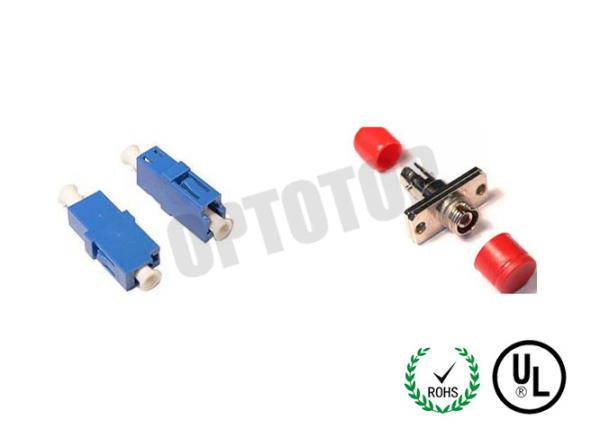

1-30 DB Bulkhead Attenuator Fiber Optic For CATV / LAN , High
Durability
Product Description
Optical pad attenuators are built with metal-ion doped optical
fiber and are designed to provide consistent attenuation levels as
well as maintaining polarization characteristics. Typical
application for an optical pad attenuator is to reduce the amount
of optical power by a specific amount as to not saturate a receiver
which can limit a system's performance. They also can be used to
test the linearity and dynamic range of photo sensors and photo
detectors in test and measurement applications.
Key Features
Low back refection, insertion loss
Available attenuation from 1dB to 30 dB
Low PDL
100% tested in factory
Environmentally stable
Manufactured with metal-ion doped
Contaminant and scratch free ferrule upon request
Multimode attenuators available
Applications
Receiver padding
CATV, LAN, telecommunications
WDM and DWDM systems channel balancing
Optical power equalization
Test and instrument
Optical transmission systems
1-30dB Fixed SC/ST/FC/LC Optical Pad Attenuator
Warranty:
Responsible for after-sales service 12 monthes
Package & Specifications
| Packaging | Description |
| Clear Ziploc bag, 1 unit per bag |
| Physical Characteristics | Parameter | Value |
| Plastic material | UL 94V-0 ABS high-impact thermoplastic |
| Fiber material | Metal-ion doped optical fiber |
| Mechanical Characteristics | Parameter | Value |
| Operating temperature (℃) | -40 ~ +85 |
| Storage temperature (℃) | -40 ~ +85 |
| Optical Performance | Parameter | Value |
| Operating bandwidth | 1250nm~1625nm |
| Center wavelength | 1310nm and 1550nm |
| Attenuation tolerance | 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB |
| Return loss UPC(dB) | ≥45 |
| Return loss APC(dB) | ≥55 |
| PDL | ≤0.1 |
Ordering information:
Type: Adapter (Female to Female), Connector (Male to Female) ,
In-line type, and variable type for your choice.
Attenuation Range: 1-30dB
Housing color: MM beige, SM UPC Blue, SM APC Green
LC,SC, FC,ST, etc attenuator for your requests.
UPC and APC option
