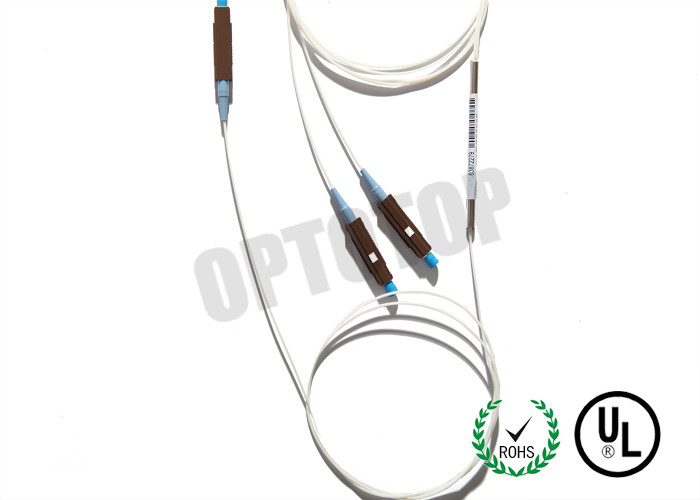

MU / UPC Dual Window Coupler 0.9 mm 1 x 2 For Long - Haul Telecommunications

Ask Lasest Price
Brand Name :	Geehe or OEM
Model Number :	Dual Window Fiber Coupler
Certification :	ROHS, REACH, UL, ISO
Price :	Price Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	300,000pcs per month
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

MU / UPC Dual Window Coupler 0.9 mm 1 x 2 For Long - Haul Telecommunications

Fbt Coupler Single Mode 1x2 1310&1550nm 5:95 MU/UPC 0.9mm

Key Features

High Stability and Reliability
Mini sizes
Low excess loss
Various Coupling Ratio
Compact Size

Applications

Long-haul Telecommunications
CATV
FTTH
Local Area Network

Description

The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Specifications

Parameter		P	A
Operating wavelength (nm)		1310&1550
Operating bandwidth (nm)		1310 ± 40nm,1550 ± 40nm
Fiber Type(dB)		Corning G652D OR Corning G657 A1
Insertion loss (dB)	50:/50	≤3.3	≤3.5
	40/60	3.70~4.40≤2.5	3.50~4.60/≤2.8
	30/70	5.00~5.60/≤1.8	4.90~6.10/≤2.1
	20/80	6.80~7.40/≤1.2	6.50~7.70/≤1.2
	10/90	9.60~10.50/≤0.6	8.80~11.40/≤0.8
	5/95	12.70~13.50 /≤0.4	12.05~14.05/≤0.5
	3/97	14.60~15.50/≤0.3	13.60~16.05/≤0.4
	2/98	16.60~17.90/≤0.25	15.60~18.20/≤0.3
	1/99	19.20~20.80/≤0.2	18.80~21.40/≤0.25
PDL (dB)		≤0.1	≤0.15
Return loss(dB)		≥50	≥45
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85

The above specification is without connector

Other specifications can be made on customer request.

Package Dimensions & Pigtail Style

Package Dimensions
Package A(Mini)	2.4mm x 35mm stainless steel tube
Package A	3.0mm x 48mm stainless steel tube
Package B	3.0mm x 55mm stainless steel tube
Package C	90mm x16mm x 9mm case
Pigtail Style
Package A	250μM bare fiber
Package B	900μM loose tube
Package C	900μM loose tube or 2mm/3mm cable

*Other package dimensions can be made on customer request.

Ordering Information

WBC-

X2-

35-

XX-

X-

XX-

xx-

P:Premium

A:Grade A

On request

12:1X2

22:2X2

35:1310/

1550nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

Grade

Port number

Operation

Wavelength

Coupling

Ratio

Fiber length

Fiber type

Connect Type

Dimension

EX:WBC-P-12-35-50-1-09-00-B
