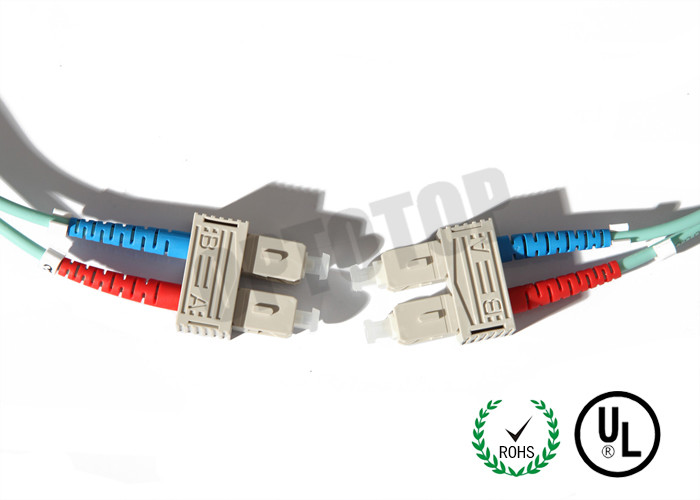

SC Connector Fiber Optic Patch Cord 2F ZIP 3 MM OFNR CORNING OM3
Feature
LC,SC,FC,ST,MPO, fiber optic patch cord
Low insertion loss and back reflection loss
Good echangeability Good Durability
High temperature stability
Telcordia GR-326-4 core compliant
Specifications:
Parameter | Unit | Index |
End-face type | PC | UPC | APC |
IL | dB | SM: ≤0.3; MM≤0.1 |
Repeatability | dB | ≤0.1 |
Interchangeability | dB | ≤0.2 |
RL | SM | dB | ≥50 | ≥50 | ≥50 |
MM | dB | ≥36 (without APC connector) |
Mating times | ＞1000 |
Operating temperature | ℃ | -40~ +80 |
Ordering Information
OFC | -X | -XX | -XX | -XX | -XX | -XX |
S: simplex D:duplex | LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC/UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
Fiber mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
EX: OFC-D-SP-SP-30-1-0.5
Product Description
Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical
capability, insertion loss<0.2dB, Good durability and
exchangeability, Compliant with TIA/EIA and IEC standard
Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
